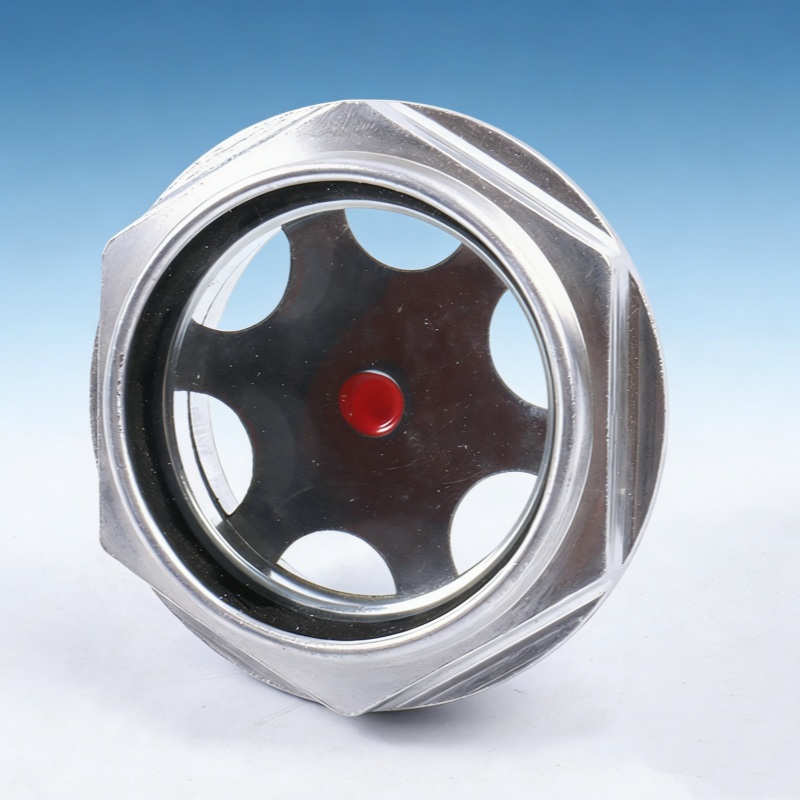

An oil level sight glass is typically composed of a transparent glass window, metal or plastic body, sealing element, and threaded connection. Depending on the equipment and operating environment, the body can be manufactured from brass, carbon steel, stainless steel, steel, aluminum alloy, or engineering plastic.

Jinan JSV Industrial Co., Ltd. supplies oil level sight glasses and customized oil level indicators for industrial equipment manufacturers, machinery manufacturers, pump manufacturers, compressor manufacturers, gearbox manufacturers, and other OEM applications.

Main Applications of Oil Level Sight Glass

Oil level sight glasses are widely used in industrial machinery where lubricating oil or hydraulic oil needs to be monitored.

1. Oil Level Sight Glass for Air Compressors

Air compressor oil level sight glasses are used to visually check the lubricating oil level in oil-lubricated compressors.

A clear glass window allows operators to quickly determine whether the oil level is within the required range.

2. Oil Level Sight Glass for Vacuum Pumps

Vacuum pumps often require lubricating oil for sealing, cooling, and lubrication.

An oil level sight glass for vacuum pumps allows users to monitor the oil level without opening the pump housing.

3. Oil Level Sight Glass for Gearboxes and Gear Reducers

Gearboxes and reducers rely on lubricating oil to reduce friction and wear between gears and bearings.

An oil level sight glass for gearbox provides a convenient way to check the oil level during equipment inspection and maintenance.

4. Oil Level Sight Glass for Hydraulic Equipment

Oil level indicators can also be used on hydraulic tanks, reservoirs, and hydraulic machinery.

5. Oil Level Sight Glass for Lubrication Systems

Oil sight glasses are also useful in centralized or individual lubrication systems.

They can be installed on:

· Lubrication reservoirs

· Oil tanks

· Bearing housings

· Gear housings

· Machine lubrication systems

· Industrial lubrication equipment

The simple visual design makes routine maintenance and oil level inspection easier.

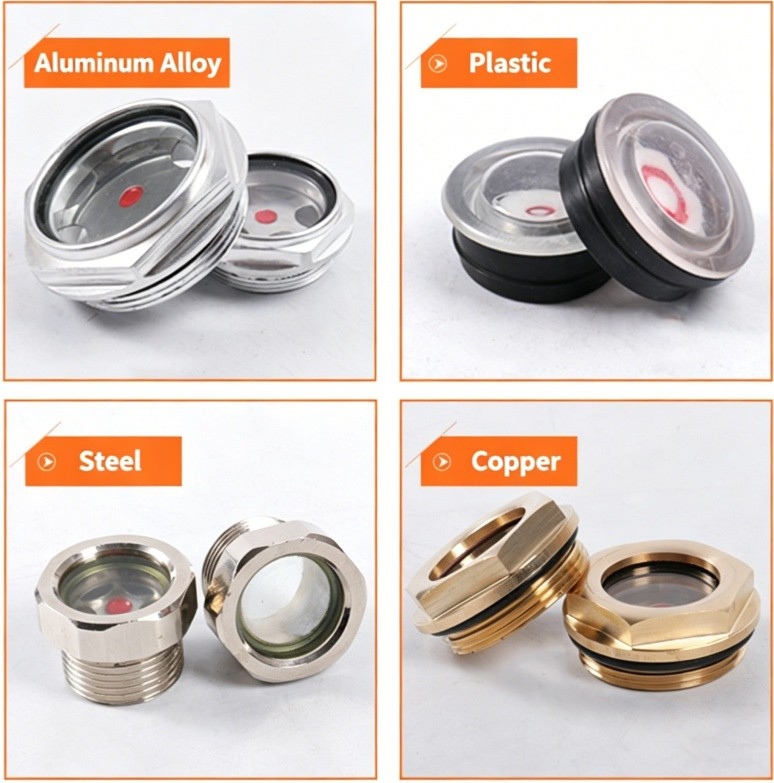

Oil Level Sight Glass Materials

Different operating environments require different housing materials.

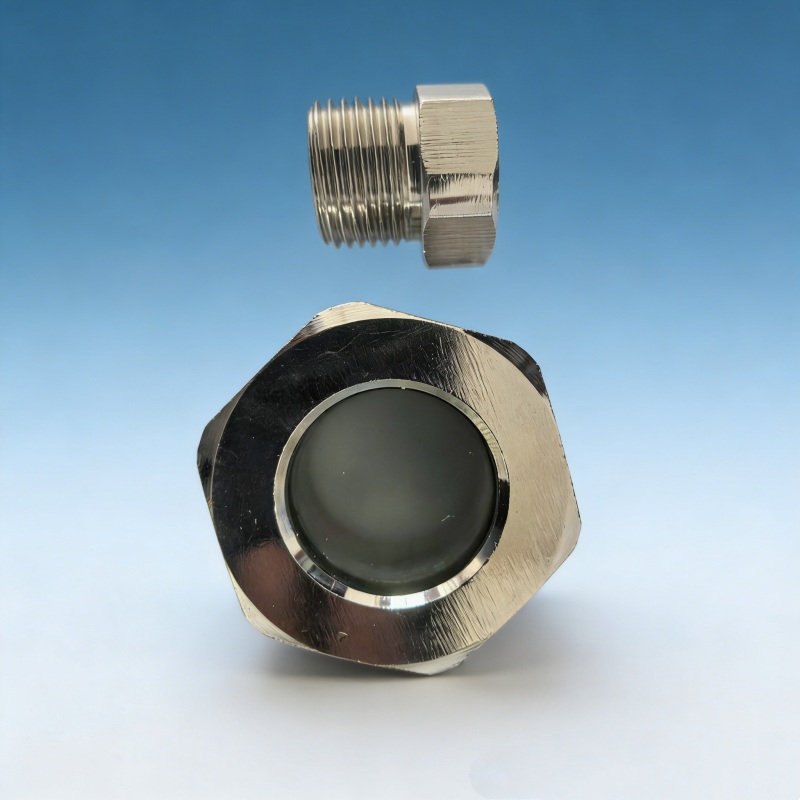

Brass Oil Level Sight Glass

Brass oil level sight glasses are widely used for general industrial applications.

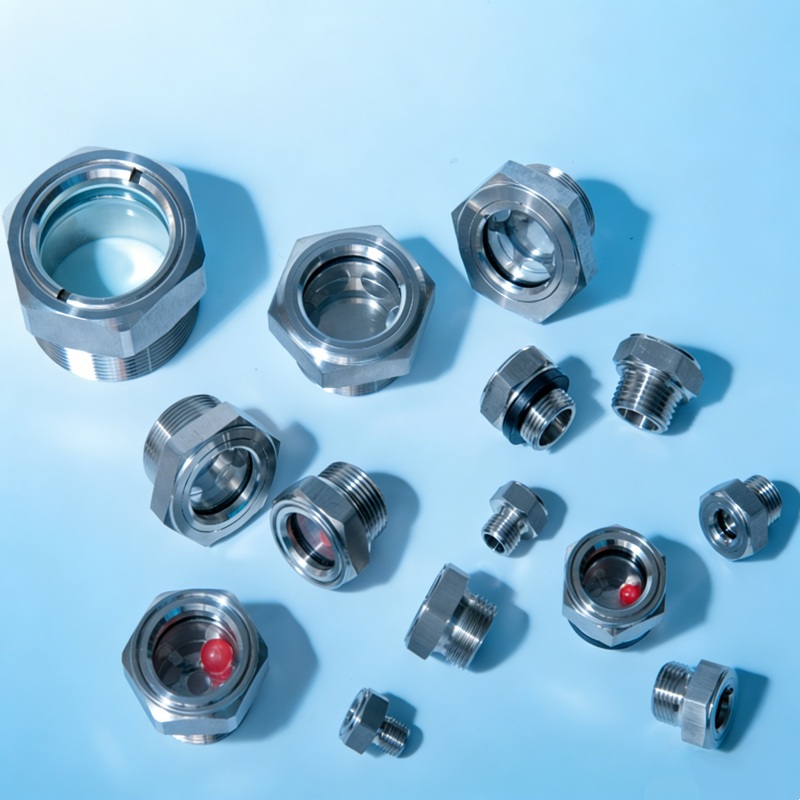

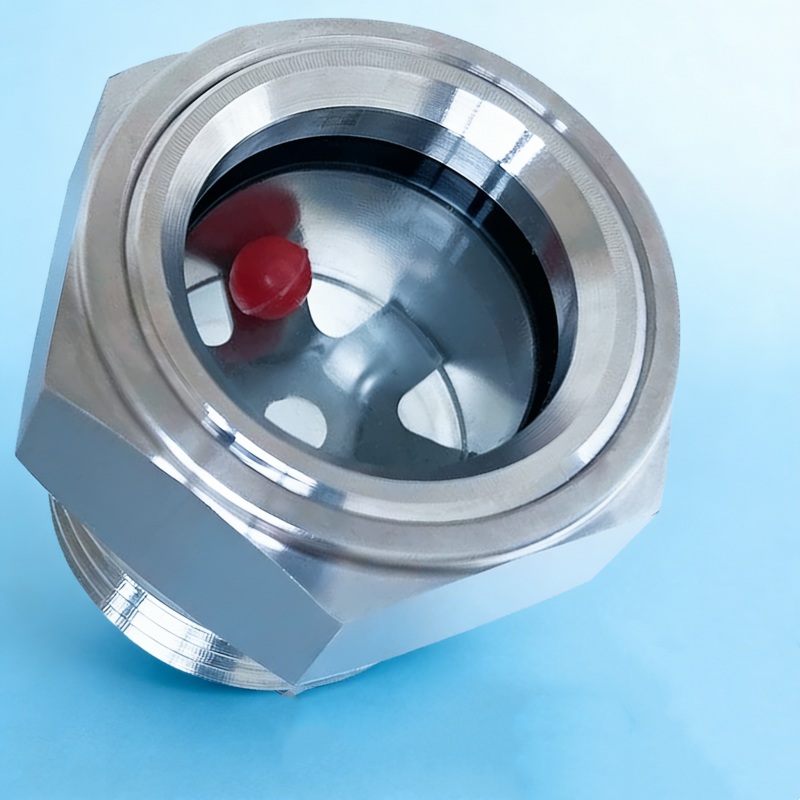

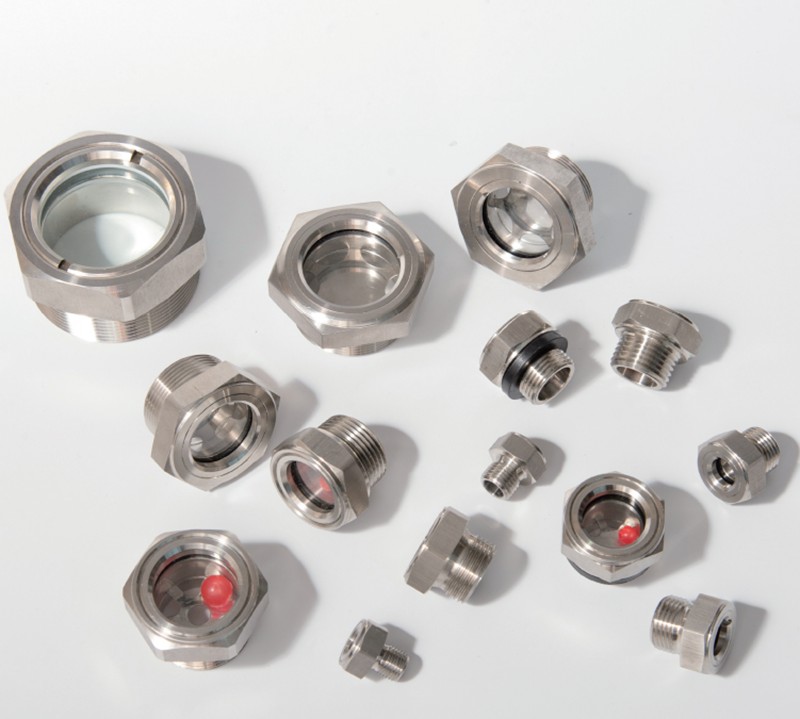

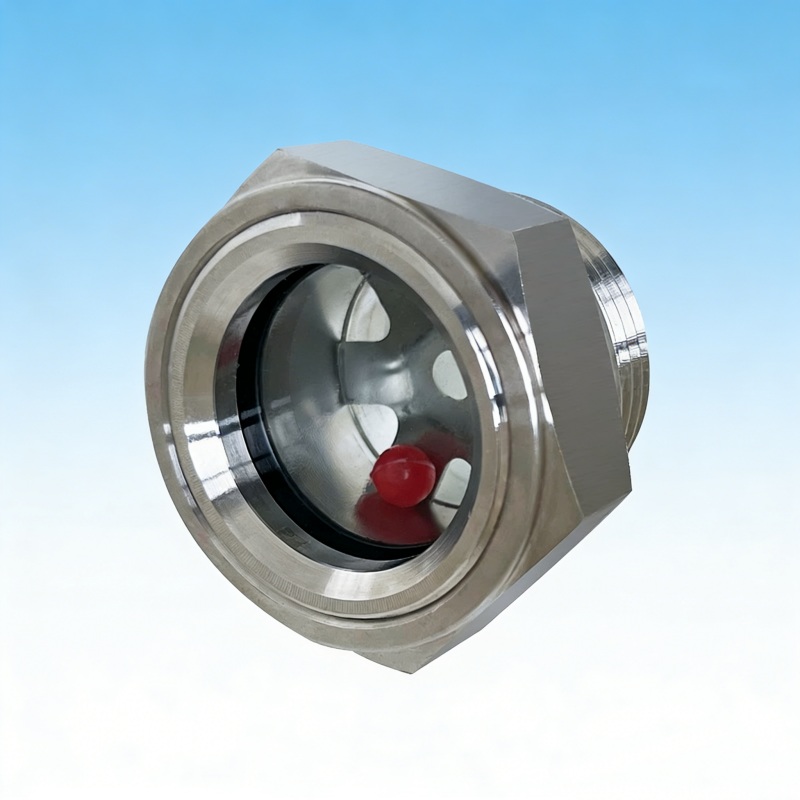

Stainless Steel Oil Level Sight Glass

Stainless steel oil level sight glasses are suitable for applications requiring higher corrosion resistance and mechanical durability.

Stainless steel grades can be selected according to the application requirements.

Carbon Steel Oil Level Sight Glass

Carbon steel oil level sight glasses provide a robust and economical solution for many industrial applications.

They are commonly used where high mechanical strength is required and the operating environment does not require the corrosion resistance of stainless steel.

Aluminum Oil Level Sight Glass

Aluminum oil level indicators offer low weight and good machinability.

They can be used in applications where weight reduction is important.

Plastic Oil Level Sight Glass

Plastic-bodied oil level indicators can provide a lightweight and cost-effective solution for suitable applications.

The plastic material must be selected according to the operating temperature, oil type, pressure, and chemical compatibility.

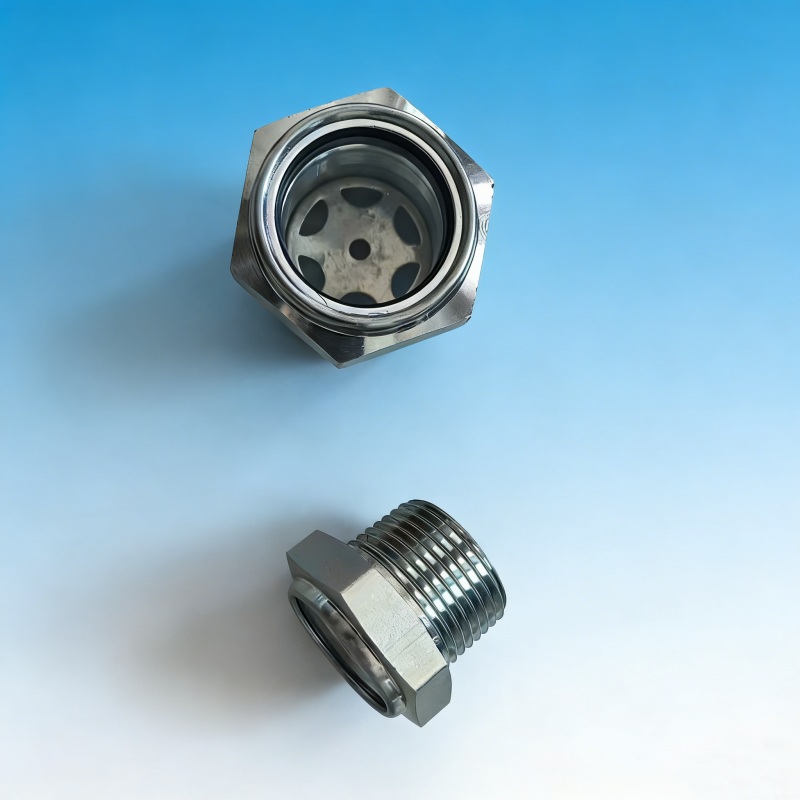

Threaded Oil Level Sight Glass

A major feature of many oil level sight glasses is the threaded connection.

The threaded design allows the sight glass to be screwed directly into a threaded hole in a tank, gearbox, pump, compressor, or other machine housing.

Depending on the customer’s equipment, different thread standards can be supplied, such as:

· Metric threads

· BSP threads

· BSPP threads

· BSPT threads

· NPT threads

· Other customized thread specifications

Common requirements may include:

· M10

· M12

· M14

· M16

· M18

· M20

· M22

· M24

· M25

· M27

· M30

· Customized metric threads

The actual thread size and thread standard should always be confirmed before ordering.
