Soda Lime Glass Tube

Soda Lime Glass Tube

As a fundamental and versatile material in numerous industries, soda-lime glass tubes are celebrated for their excellent transparency, chemical stability, and cost-effectiveness. With years of expertise in glass manufacturing and export, we specialize in producing premium soda-lime glass tubes that meet the rigorous standards of global markets.

Both tube and rod are available for this soda lime glass. There is a wide range of dimensions, it is a economical choice in many different applications with the property of high transmission, high thermal expansion and high chemical resistance.


Contact information

Phone:+86 18663767619
WhatsApp:+86 18663767619
Email:hanna@jsvglass.com
Inquiry Now →

PRODUCT DESCRIPTION

Laboratory:

Test tube, glass dropper, measuring cylinder, blown and pressed laboratory glassware

Lighting

Neon tube, lamp bulb, exhaust and flare tube, stem tube

Pharmaceutical Packaging

Bottle, vial

Home

Straw, Christmas ball, cosmetics, cup


Technical Data

Technical Data
Chemical Composition(components in approx. weight %):

No.

Composition

Wt.%

Tolerance

1

SiO2

71.2

+/-1.0

2

B2O3

1.2

+/-0.2

3

Al2O3

2.8

+/-0.2

4

Na2O

15.2

+/-0.5

5

K2O

1.2

+/-0.2

6

CaO

5.0

+/-0.4

7

MgO

3.0

+/-0.3

Physical Data:

1

Coefficient of mean linear thermal expansion (20ºC~380ºC)

9.1

10-6K-1

2

Softening point

685

ºC

3

Density

2.5

g/cm3

We Provide Complete Fabrication Services:

Cutting & Edging:
• Precision cutting to specified lengths
• Flame polishing for smooth edges
• Bevelled edges for easier installation
• CNC cutting for complex shapes
Secondary Processing:
• End forming and flanging
• Drilling and perforation
• Surface treatments
• Graduation marking

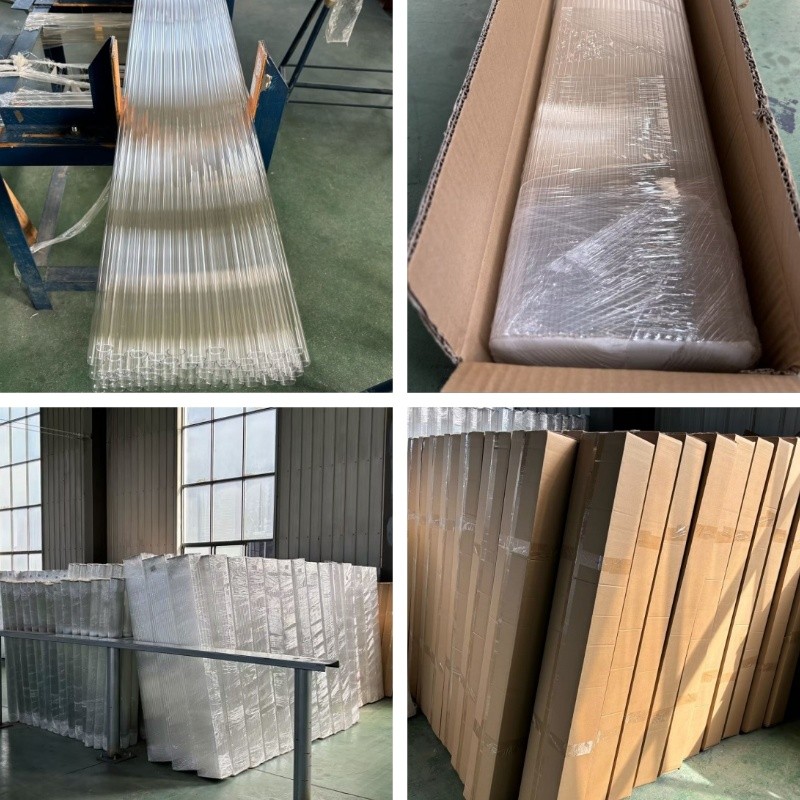

Product image
