Lead Free Glass Tube (pH360 Glass Tube)

Lead Free Glass Tube (pH360 Glass Tube)

PH360 Glass Tube (Lead Free Glass Tube)

PH360 glass tube (lead free glass tube) is the ideal choice for meeting strict global environmental  standards and diverse industrial & commercial needs. Crafted with advanced lead-free formula and precision processing technology, our glass tubes combine exceptional safety, superior performance, and elegant appearance, making them highly sought-after in international markets.

Lead free glass tube is availabe in custom dimensions and easy to be processed, formed or sealed with other material, it is widely used for the production of pH glass sensor, pH electrode, pH meters and in lamp lighting and electronic industry.

Contact information

Phone:+86 18663767619
WhatsApp:+86 18663767619
Email:hanna@jsvglass.com
Inquiry Now →

PRODUCT DESCRIPTION

Product Name

PH360 glass tube, lead free glass tube, 8366 glass tube

Diameter

Outside diameter from 2mm to 30mm

Feature

Ease of processing

Processing

Cutting, fire polishing, sealing

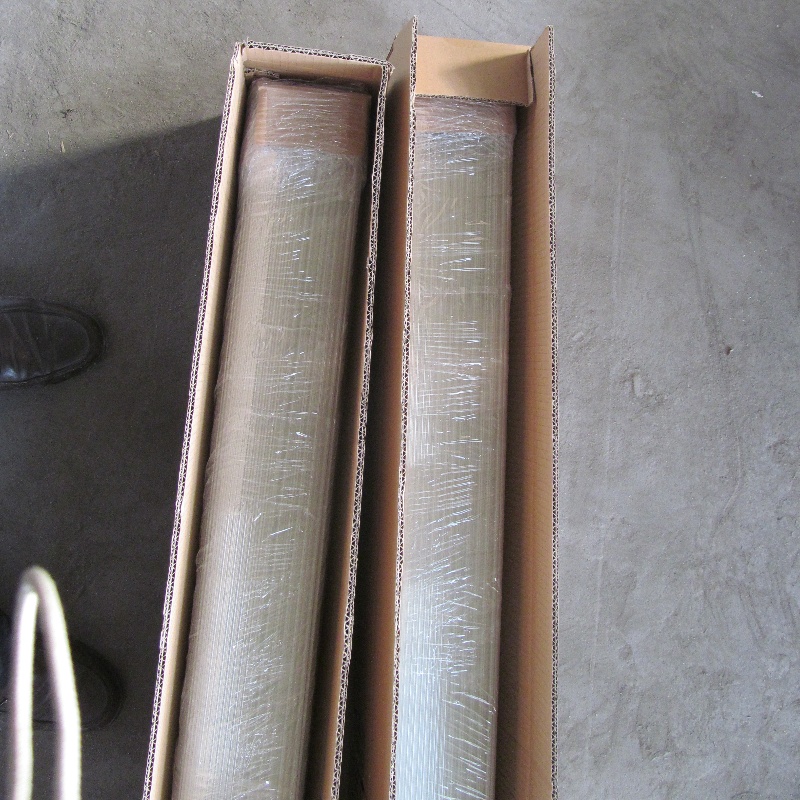

Packing

Carton, pallet, wooden crate

One important application is the production of pH sensors and pH electrodes. A specialized type of lead-free glass tube, commonly known as pH360 glass tube, is designed for use in pH sensing and water quality measurement applications.

Jinan JSV Industrial Co., Ltd. supplies lead free glass tubes and pH360 glass tubes for international manufacturers of lighting products, pH sensors, pH electrodes, water quality testing equipment, and other specialized glass components.

What Is pH360 Glass Tube?

pH360 Glass Tube is a type of lead-free glass tube primarily used for manufacturing pH sensors, pH electrodes, pH probes, and water quality testing sensors.

The glass tube serves as an important component of the sensing structure and can be processed into the required dimensions and configurations for different electrode designs.

Lead Free Glass Tube for Lighting Applications

In addition to pH sensors, lead free glass tubes can be used in various lighting and electrical applications.

Typical applications include:

· Lighting components

· Lamp manufacturing

· Glass stems

· Lamp stem components

· Exhaust tubes

· Flared tubes

· Lead-free lamp tubes

· Lighting glass components

For lamp manufacturing, lead-free glass tubing can be processed into specific components such as exhaust tubes and flared tubes according to the design of the lamp and manufacturing process.

Technical Data

Main Chemical Composition:

No.

Composition

Wt.%

Tolerance

1

SiO2

67.6

+/-1.0

2

BaO

8.9

+/-0.5

3

Na2O

7.5

+/-0.5

4

K2O

4.9

+/-0.5

5

Al2O3

3.4

+/-0.4

6

SrO

3.0

+/-0.4

7

CaO

1.9

+/-0.3

Physical Data:

1

Coefficient of mean linear thermal expansion (20℃~380℃)

9.1

10-6K-1

2

Density

2.62

g/cm3

3

Softening point

675

4

Stress point

455

5

Working temperature

1020


Product image

1783496795933386972574937088.jpg@!w400

1783496796933386975980711936.jpg@!w400

1783495297933380688018567168.png@!w400
